The ac power surge protection device is designed to prevent transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and power anomalies account for only 20% of instantaneous surges. The remaining 80% of the surge activity is generated internally.


Our AC power SPD surge protection device, also called AC surge arrester or AC surge suppressor, supports long-term system reliability by absorbing large amounts of transient energy while maintaining low clamp voltages.

Our type 2 AC surge protector SPD can provide high-quality, safe and reliable surge protection for devices in power supply circuit systems.

The surge protector for AC compressor is widely used in petrochemical, gas, environmental protection and new energy industries.


CHENZHU, a reliable company in safety and automation system, also provide various other surge protectors to meet the needs of our customers, such as mini split voltage protector. For the price of AC SPD surge protector and other related information, please feel free to contact us.




Advantages of AC Power SPD

  • Innovatively patented technology

-Disconnection is realized by complete isolation of electrodes which can cut off solder adhesion and extinguish arcs.

-Short circuit withstanding capacity is up to 1000A without external backup fuse.

-Innovated preheating process, automatic soldering and automatic inspection technology.

-Suitable for harsh environments such as offshore wind turbines, high altitude solar power stations, outdoor charging stations and etc; passed multiple tests such as 96h salt spray, 2g vibration, Flame retardant grade: V0, Max. withstanding temperature: 220℃.

  • Easy maintenance

-Hot pluggable

-Failure indication

-Remote alarm


Rely on safety technical standards

  • International certification

  • Invention patent

  • Laboratory authorized by TÜV Rheinland group

Ac Surge Protection Device Features

  • Suitable For Different Power Supply System

  • IP20 Housing Protection Grade

  • PA66/V0 Housing Material/ Inflammability (UL94)

  • Hot Pluggable Easy to Maintain

  • Fault Indication

  • Remote Alarm

  • Response time: 25 ns


AC SPC Application

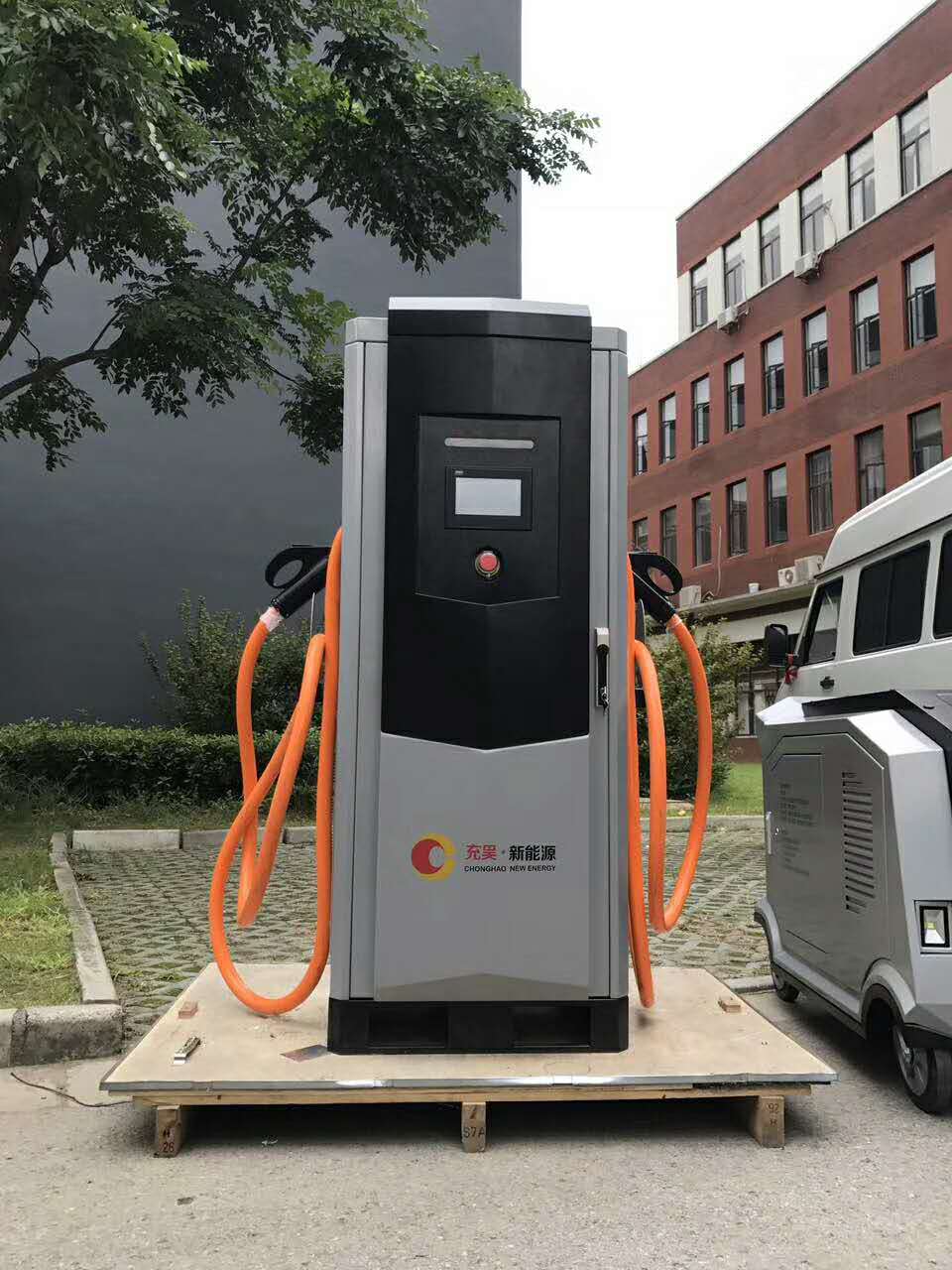

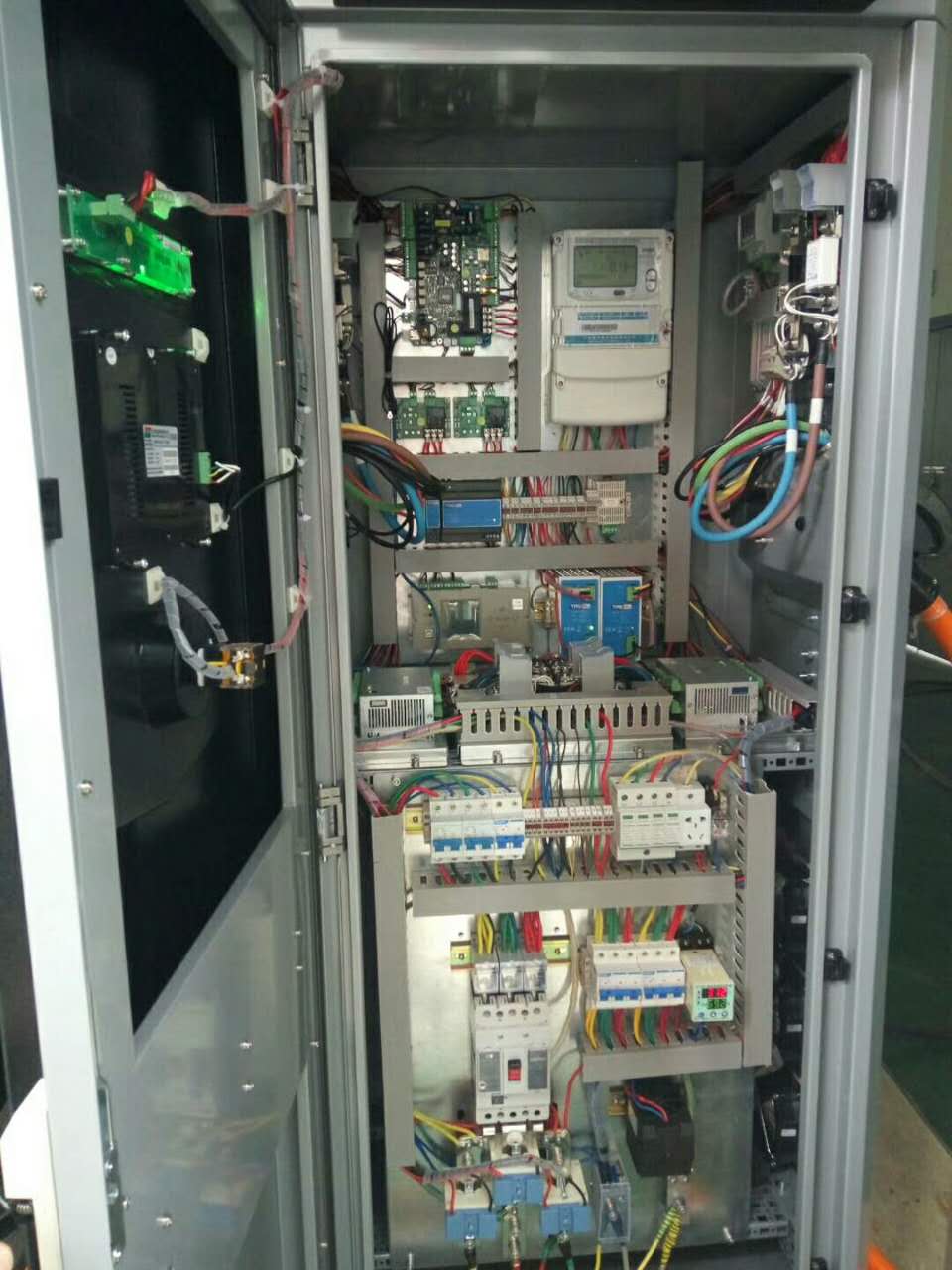

AC POWER SPD is used in electric vehicle charging stations. In these stations, the AC SPD protects charging equipment from voltage surges caused by grid instability and lightning strikes. It effectively prevents damage and data loss due to high voltages, ensuring a safe and stable charging process.





FAQ of AC Surge Protector

Q

How to select AC Surge Protection Device?

A

1. Maximum continuous operating voltage Uc

2. Discharging capacity

3. Combination

Q

What is In and limp means?

A

Nominal discharge current (In) is the Max. Anti-surge Current Capacity.

Impulse current (Iimp) is the current that defined by the three parameters: Ipak, Q, and W/R, typically with a waveform of 10/350us.

Here,
we will meet your various needs
We have over 24 years experience in design and manufacturer of Automation Safety Interface Products.
