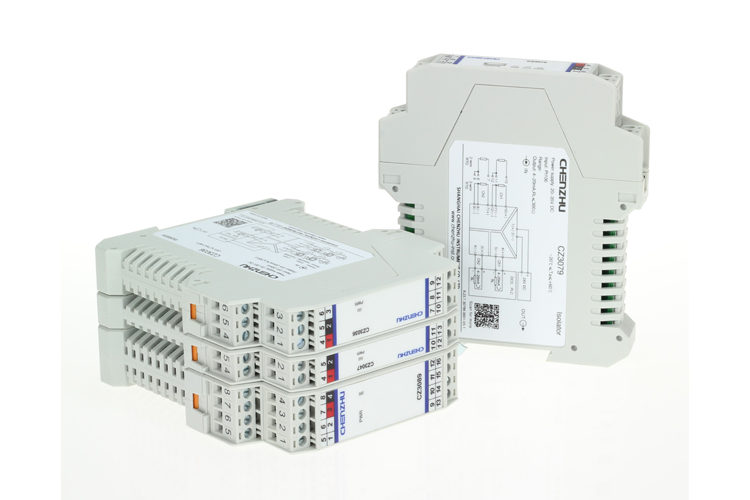

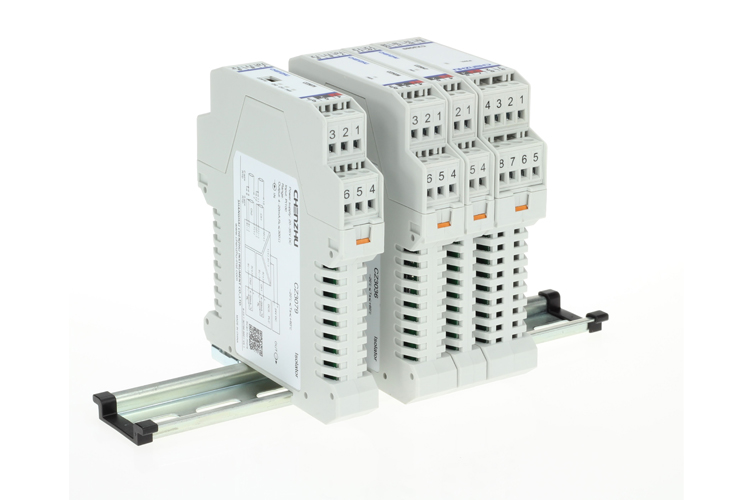

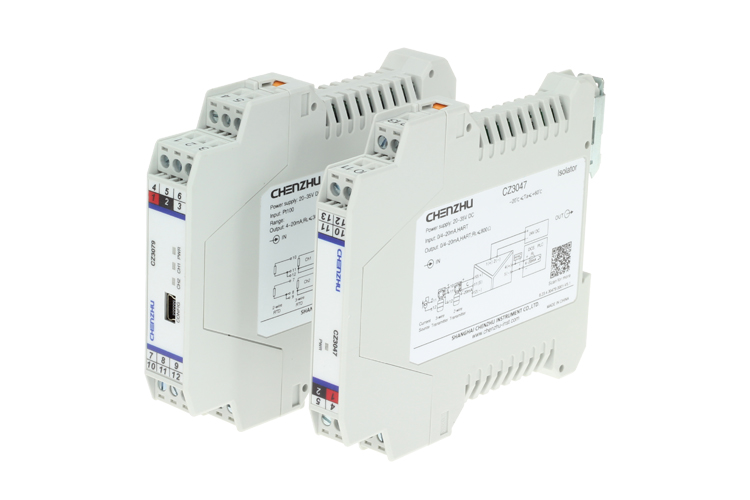

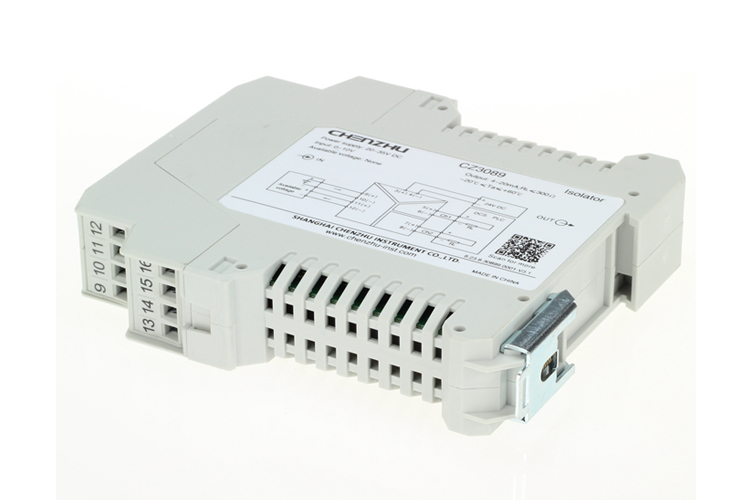

CZ3000 Frequency Converter Signal Conditioner

The frequency transducer, frequency signal will be set according to the user to convert the linear range 4~20mA( or 1~20mA) output.


This transducer signal conditioning equipment has one relay alarm output. This product need be supplied independently, and the power supply, input and output are isolated from each other.

Advantages of CZ3000 Frequency Converter Signal Conditioner

  • 24V DC independent power supply

  • Acquisition of NPN, PNP, NAMUR, and frequency signals Line fault detection(LFD)

  • Configurable by software(CZ3055) or membrane keypad(CZ3355)

  • LED display(CZ3355)

Parameter of CZ3000 Frequency Converter Signal Conditioner


CZ3055
1/1
CZ3355
1/3
PNP / NPN TransistorPower distribution:14V,current<20mAPower distribution:14V,current<20mA
Voltage Pulse SourceMax. Input voltage:30VMax. Input voltage:30V
Switch/Proximity SwitchPower distribution≈8V,Short-circuit current≈8mAPower distribution≈8V,Short-circuit current≈8mA
Frequency Range / Pulse Width0.1Hz~100kHz/≥2μs0.1Hz~100kHz/≥2μs
Output Current/Load Resistance0~20mA,4~20mA / RL ≤400Ω0~20mA,4~20mA / RL ≤400Ω
Output Voltage/Load Resistance0~5V,1~5V / RL≥300kΩ0~5V,1~5V / RL≥300kΩ
Relay Output1*SPST2*SPST
Contact Rating250V AC,2A / 30V DC,2A;Resistive load250V AC,2A / 30V DC,2A;Resistive load
Response Time @100kHz input(0~90%)≤20ms≤20ms
Supply Voltage20~35V DC20~35V DC
Power Reverse ProtectionSupportSupport
Current Consumption(Supply voltage: 24V)≤90mA≤110mA
Conversion Accuracy0.1%F.S.(Typical≤0.05%F.S.)0.1%F.S.(Typical≤0.05%F.S.)
Temperature Drift0.01% F.S./℃0.01% F.S./℃
Dielectric Strength1500V AC;1min1500V AC;1min
Insulation Resistance≥100MΩ;500V DC≥100MΩ;500V DC
EMC StandardsGB/T 18268(IEC 61326-1)GB/T 18268(IEC 61326-1)
Ambient Temperature-20℃~+60℃-20℃~+60℃
Suitable Field ApparatusNAMUR proximity switch,dry contact,frequency generator, PNP/NPN transistor outputs according to DIN 19234 standardsNAMUR proximity switch,dry contact,frequency generator, PNP/NPN transistor outputs according to DIN 19234 standards

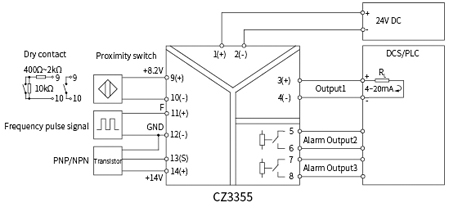

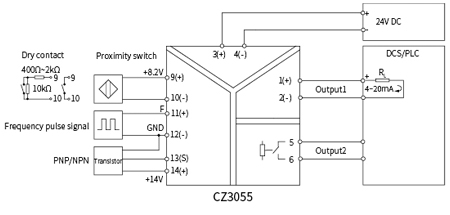

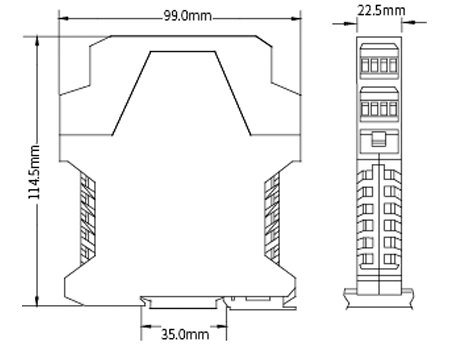

Dimensions of CZ3000 Frequency Converter Signal Conditioner


CZ3000 Frequency Converter Signal Conditioner


Typical Applications of CZ3000 Frequency Converter Signal Conditioner


CZ3000 Frequency Converter Signal ConditionerCZ3000 Frequency Converter Signal Conditioner
