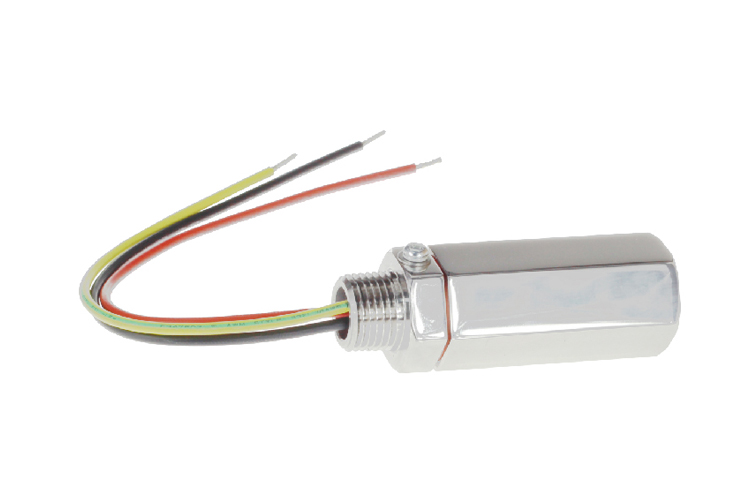

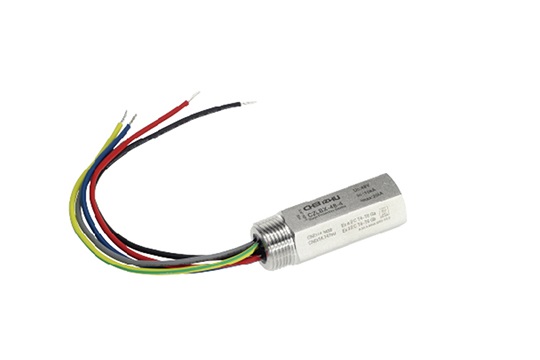

Screw Mounting SPD Parallel Connection

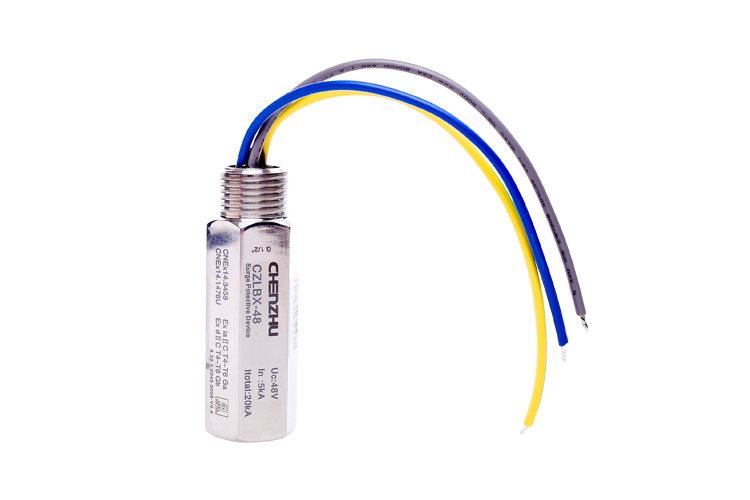

SPD for on site instruments; 2/3/4 wires; mounted in parallel through thread: 3/4 ''NPT, male; C2: 20kV/10kA, D1: 2.5kA/line; intrinsic safety and flameproof: Ex ia IIC T4~T6 Ga, Ex d IIC T4~T6 Gb;

Features & Advantages of Screw Mounting SPD Parallel Connection

  • Intrinsic safety certification; explosion proof electrical product certification.

  • Suitable for 2, 3, 4 wire temperature transmitter, thermal resistor, thermocouple, flow meter, solenoid valve, RS-485, RS-232, etc.

Parameter of Screw Mounting SPD Parallel Connection


CZLBX-48CZLBX-48-3CZLBX-48-4
Technical data2-wire3-wire4-wire
Nominal operating voltage Un24V DC24V DC24V DC
Max. continuous operating voltage Uc48V DC48V DC48V DC
Nominal discharge current In(8/20µs)10kA10kA10kA
Max. discharge current Imax(8/20µs)20kA20kA20kA
Impulse current Iimp(10/350µs)2.5kA2.5kA2.5kA
Voltage protection level Up(8/20µs)85V85V85V
Voltage protection level Up(1kV/μs)600V600V600V
Bandwidth(-0.5dB)10MHz10MHz10MHz
Response time1ns1ns1ns
Housing protection grade(IEC60529)IP 65IP 65IP 65
Housing material304 stainless steel304 stainless steel304 stainless steel
Thread standardspecified in ordersspecified in ordersspecified in orders
Testing standardIEC 61643-21IEC 61643-21IEC 61643-21
Intrinsic safety certificationEx ia II C T4~T6 GaEx ia II C T4~T6 GaEx ia II C T4~T6 Ga
Flame-proof safety certificationEx d II C T4~T6 GbEx d II C T4~T6 GbEx d II C T4~T6 Gb
Functional safety certificationSIL3SIL3SIL3

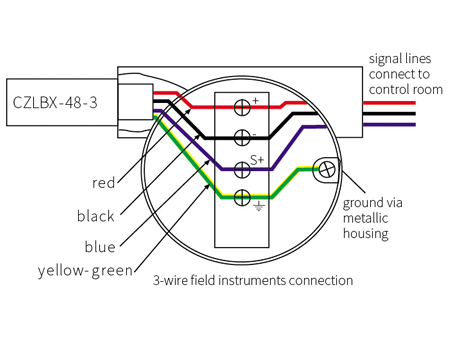

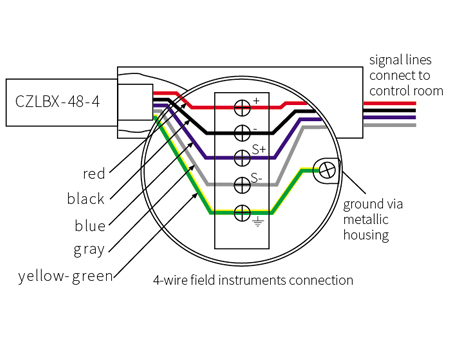

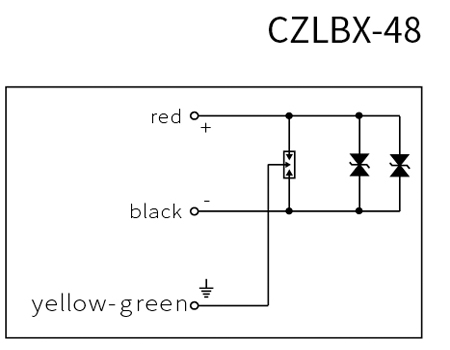

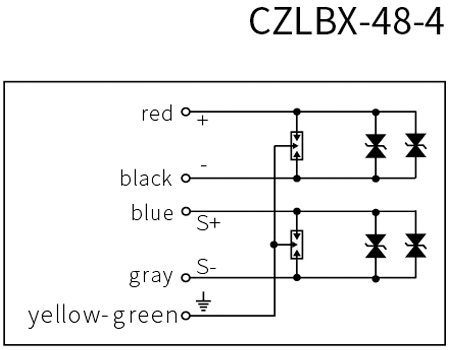

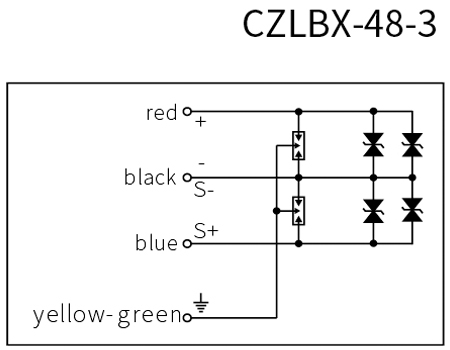

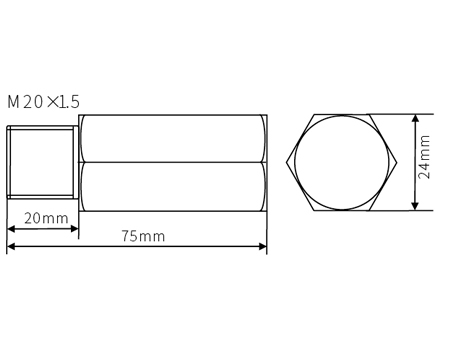

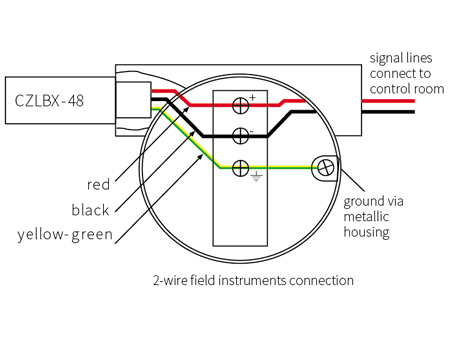

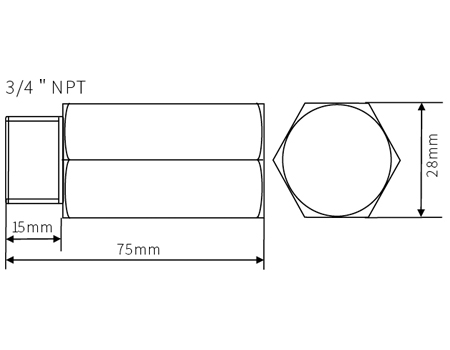

Schematic Diagram of Screw Mounting SPD Parallel Connection
