CZHTB-16 Termination Board

Technical data of CZHTB-16 Termination Board

Input
Input Signal4~20mA(HART)
External Resistor (PID setting)OFF: 0Ω (Suitable for 10 card 4~20mA); ON: 250Ω (Suitable for 10 card 1~5V)
Connection methodScrew terminal
Output
Output signal4~20mA(HART)
Connection methodScrew terminal
Output signalHART
Connection method20 PIN header
Connection to master/slave devicesCZHR20-X/CZHM20-X
Parameter
Electromagnetic compatibilityIEC61000-6-2; IEC61000-6-4; IEC61326-1
Operating temperature-40~70℃
Storage temperature-40~85℃
Relative humidity5%~95%R.H.,non-condensing
Protection levelIP20
Certification
CEEMC directive 2014/30/EU

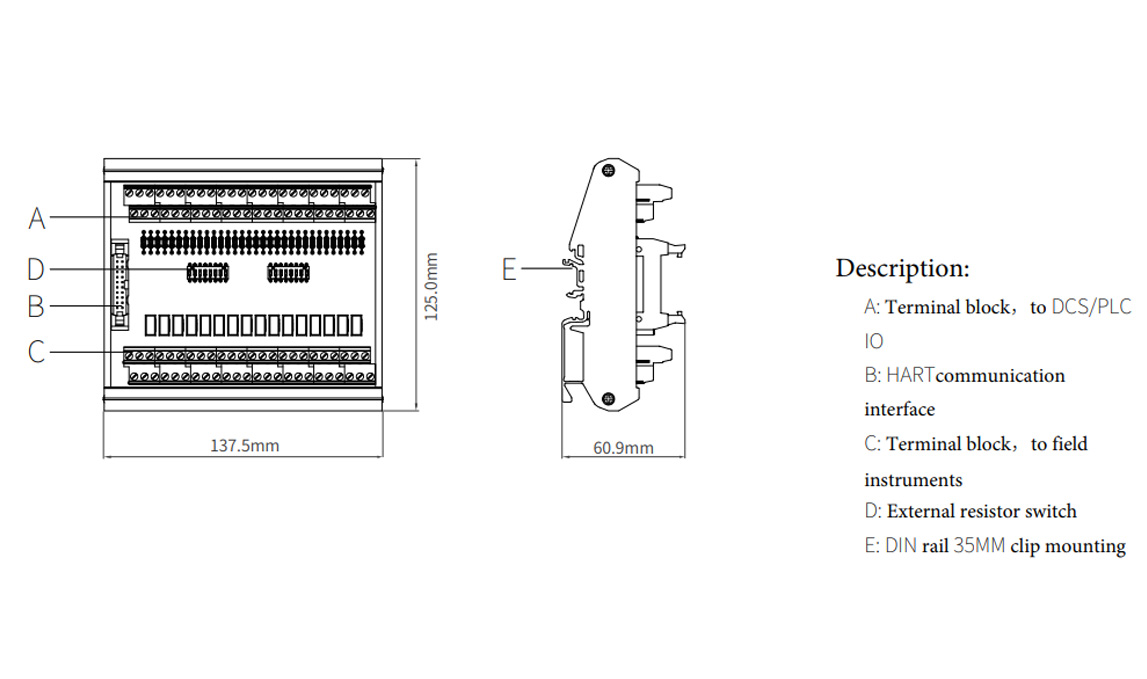

Dimensions of CZHTB-16 Termination Board
