GS5000-EX Analogue Intrinsic Safety Barrier Loop Power

These products can work as AI isolated barriers to provide separate power to the transmitter located in the hazardous area and transfer the current from hazardous area to safe area. They can also work as AO isolated barriers to transfer current signal from the safe area to the hazardous area and drive devices like actuator in field.


This intrinsically safe electrical equipment is designed to allow bi-directional transmission of HART communication signals. The input and output are each galvanically isolated, and these products are loop powered.

Advantages of GS5000-EX Analogue Intrinsic Safety Barrier Loop Power

  • Ultra-thin 12.5mm

  • High reliability and precision

  • 3-way galvanic accuracy

  • High-density installation

  • Variety of specifications and models

Parameter of GS5000-EX Analogue Intrinsic Safety Barrier Loop Power



1/1:GS5031-EX
2/2:GS5032-EX
Loop Supply Voltage20~30V DC
Temperature drift0.01%F.S./℃
Input signal4~20mA; HART
Output signal4~20mA; HART
Temperature Drift0.01%F.S./℃
Ambient temperature-20℃~+60℃
WeightApprox. 150g

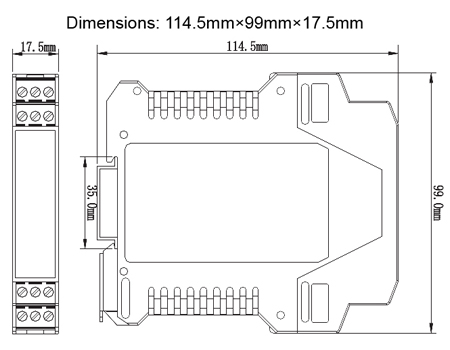

Dimensions of GS5000-EX Analogue Intrinsic Safety Barrier Loop Power

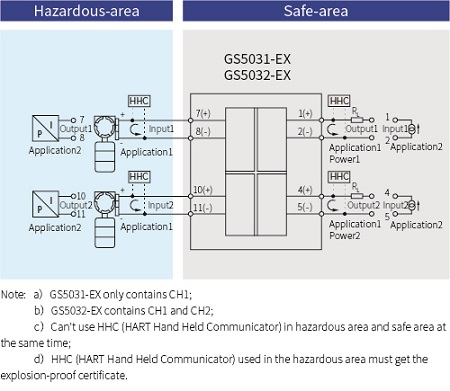

Typical Applications of GS5000-EX Analogue Intrinsic Safety Barrier Loop Power


GS5000-EX Analogue Intrinsic Safety Barrier Loop Power
