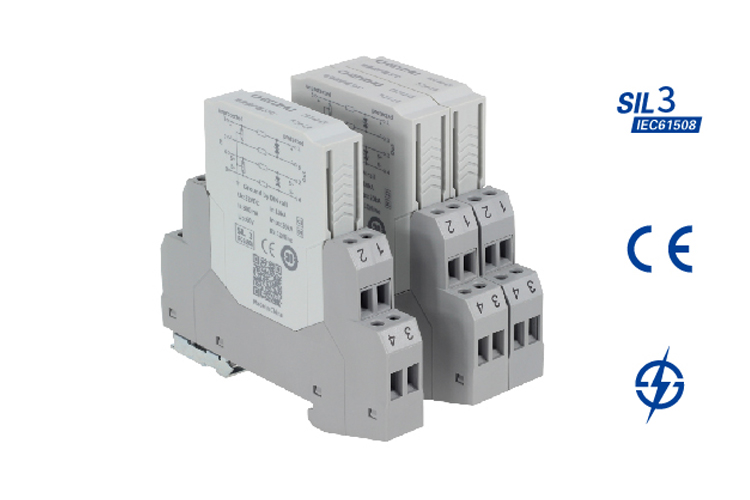

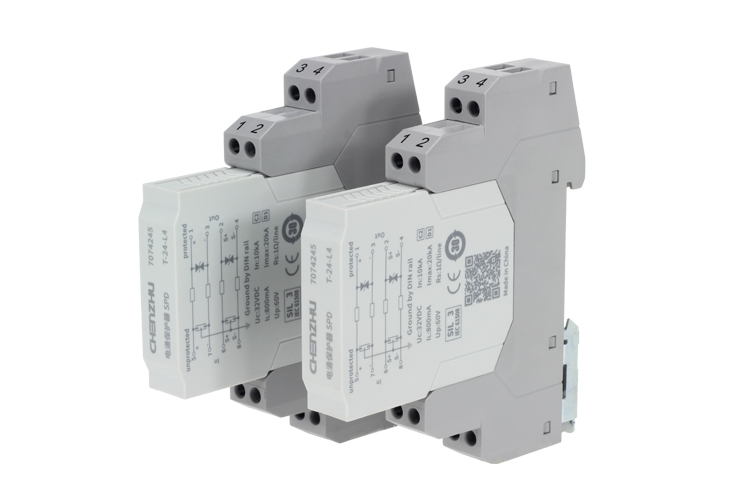

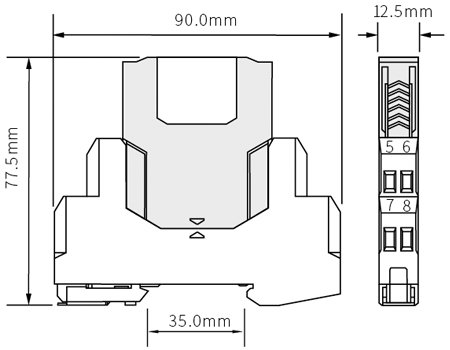

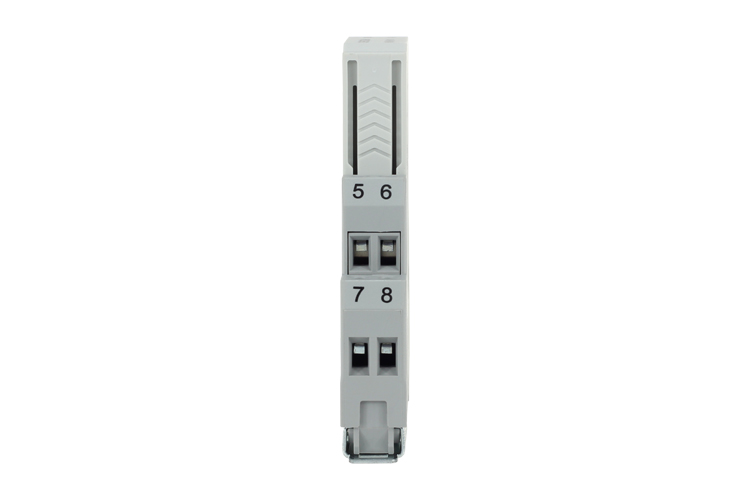

Signal SPD For 24V

SPD for 24V signal; C2: 20kV/10kA, D1: 2.5kA/line; hot-pluggable; grounded through DIN rail

Advantages of Signal SPD For 24V

  • 12.5mm 2-channel ultra-thin design.

  • Hot pluggable.

  • SPD protection modules can be tested individually.

  • Suitable for AI, AO, DI, DO, RS-232 and etc.

  • Ground via DIN 35mm rail.

Parameter of Signal SPD For 24V


T-24-LT-24-L3T-24-L4
Technical data2-wire3-wire4-wire
Nominal operating voltage Un24V DC24V DC24V
Max. continuous operating voltage Uc32V DC32V DC32V
Nominal operating current IL800mA800mA800mA
Nominal discharge current In(8/20µs)10kA10kA10kA
Max. discharge current Imax(8/20µs)20kA20kA20kA
Impulse current Iimp(10/350µs)2.5kA2.5kA2.5kA
Total impulse current(10/350µs)5kA7.5kA10kA
Voltage protection level Up(8/20µs)L-L: 60V/L-G: 600VL-L: 60V/L-G: 600VL-L: 60V/L-G: 600V
Voltage protection level Up(1kV/μs)L-L: 40V/L-G: 600VL-L: 40V/L-G: 600VL-L: 40V/L-G: 600V
Bandwidth(-0.5dB)10MHz10MHz10MHz
Response time1ns1ns1ns
Resistance(per line)
Residual current IPE<1μA<1μA<1μA
Housing protection grade(IEC60529)IP 20IP 20IP 20
Housing material/inflammability rating(UL94)PA66/V0PA66/V0PA66/V0
Testing standardIEC 61643-21IEC 61643-21IEC 61643-21
Functional safety certificationSIL3SIL3SIL3

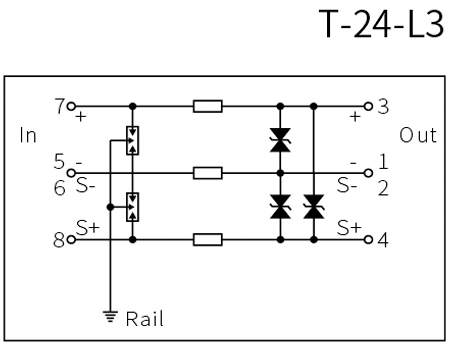

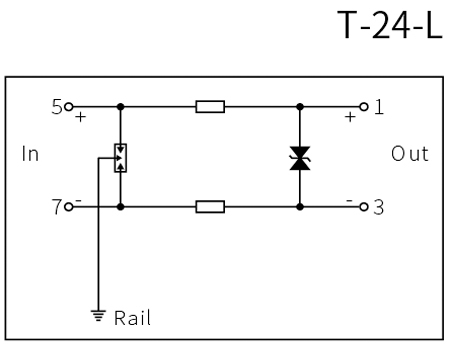

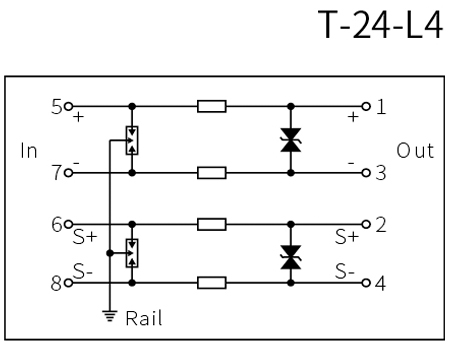

Schematic Diagram of Signal SPD For 24V


Signal SPD For 24VSignal SPD For 24V

Signal SPD For 24VSignal SPD For 24V

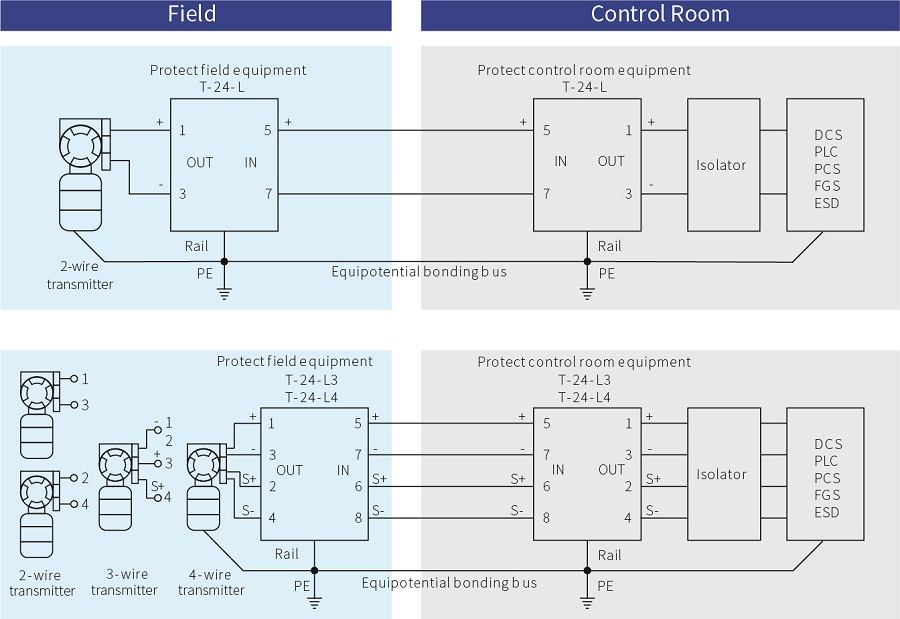

Typical Applications of Signal SPD For 24V
