GS8500-EX Frequency Converter Intrinsic Safety Barrier

Frequency converter isolated barrier, change the digital input signal in the hazardous area into a proportional free adjustable 0/4~20mA (or 0/1~5V) analog output signal and function as a trip alarm.


This intrinsic barrier needs an independent power supply and galvanic isolation among power supply, input and output.

Advantages of GS8500-EX Frequency Converter  Intrinsic Safety Barrier

  • Ultra-thin 12.5mm

  • High reliability and precision

  • Strong EMC performance

  • G3 anti-corrosion

  • Flexible power mode

Parameter of GS8500-EX Frequency Converter  Intrinsic Safety Barrier



1/1:GS8555-EX1/3:GS8355-EX
Supply Voltage20~35V DC20~35V DC
Current Consumption≤60mA≤110mA
Input signalFrequency(0.1~100kHz)Frequency(0.1~100kHz)
Output signal0/4~20mA; 0/1-5V0/4~20mA; 0/1-5V
Response Time≤20ms≤20ms
Temperature Drift0.01%F.S./℃0.01%F.S./℃
Pulse Width≥2μs≥2μs
Ambient Temperature-20℃~+60℃-20℃~+60℃
WeightApprox.150gApprox.350g

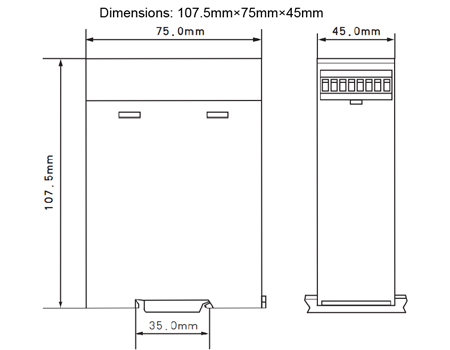

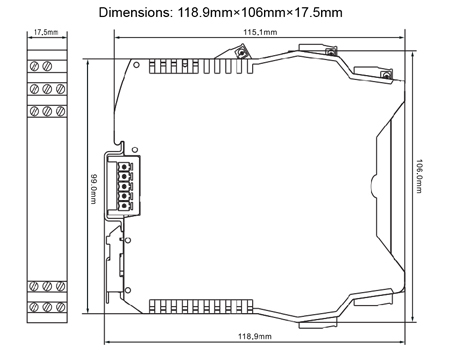

Dimensions of GS8500-EX Frequency Converter  Intrinsic Safety Barrier


GS8500-EX Frequency Converter  Intrinsic Safety BarrierGS8500-EX Frequency Converter  Intrinsic Safety Barrier

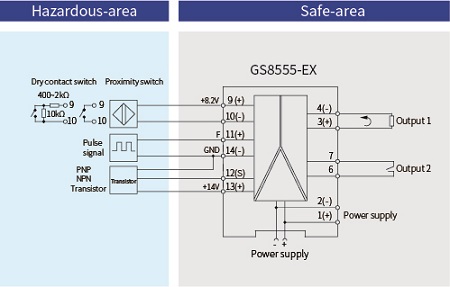

Typical Applications of GS8500-EX Frequency Converter  Intrinsic Safety Barrier


GS8500-EX Frequency Converter  Intrinsic Safety Barrier   GS8500-EX Frequency Converter  Intrinsic Safety Barrier
