GS8200-EX Temperature To RS485 Intrinsic Safety Barrier

Temperature to RS485 intrinsic safety barrier with signal channel temperature input and multifunctional output, convert the input signals into proportional 4~20mA current signal from hazardous area to safe area.


With affordable intrinsically safe barrier price, it has an alarm setting function, which can be output by relay according to set parameters. The RS485 interface can be connected with rail and the power supply can be connected with rail or terminals.

Advantages of GS8200-EX Temperature To RS485 Intrinsic Safety Barrier

  • Input state monitoring

  • Relay output

  • RS485 communication

  • Flexible power mode

  • Easy to configure

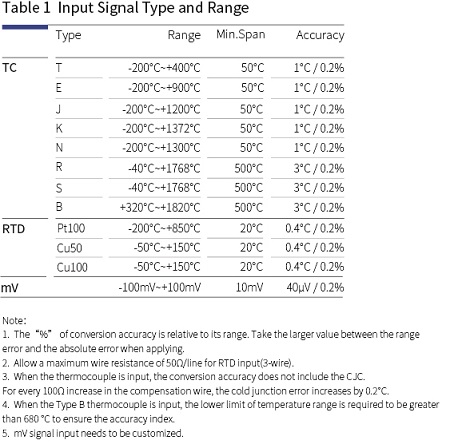

Parameter of GS8200-EX Temperature To RS485 Intrinsic Safety Barrier


1/4:GS8272-EX.AMR1/3:GS8272-EX.MR1/3:GS8272-EX.AR1/3:GS8272-EX.AM
Supply Voltage20~35V DC20~35V DC20~35V DC20~35V DC
Current Consumption≤40mA≤35mA≤40mA≤35mA
Input signalPt100;Cu50;Cu100;T;E;J;K;N;R;S;BPt100;Cu50;Cu100;T;E;J;K;N;R;S;BPt100;Cu50;Cu100;T;E;J;K;N;R;S;BPt100;Cu50;Cu100;T;E;J;K;N;R;S;B
Transmission Accuracy0.1%F.S.0.1%F.S.0.1%F.S.0.1%F.S.
CJC error±1℃(-20℃~+60℃)±1℃(-20℃~+60℃)±1℃(-20℃~+60℃)±1℃(-20℃~+60℃)
RS-485 OutputInvolveInvolve-Involve
Relay alarm outputInvolveInvolveInvolve-
Ambient Temperature-20℃~+60℃-20℃~+60℃-20℃~+60℃-20℃~+60℃
WeightApprox.150gApprox.150gApprox.150gApprox.150g

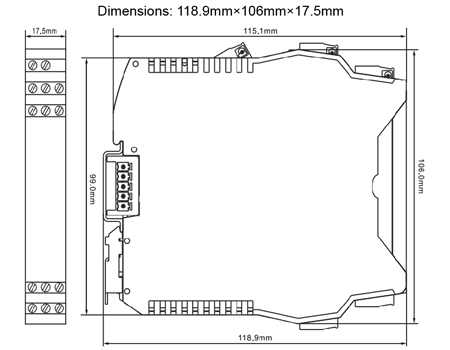

Dimensions of GS8200-EX Temperature To RS485 Intrinsic Safety Barrier


GS8200-EX Temperature To RS485 Intrinsic Safety Barrier

GS8200-EX Temperature To RS485 Intrinsic Safety BarrierGS8200-EX Temperature To RS485 Intrinsic Safety Barrier

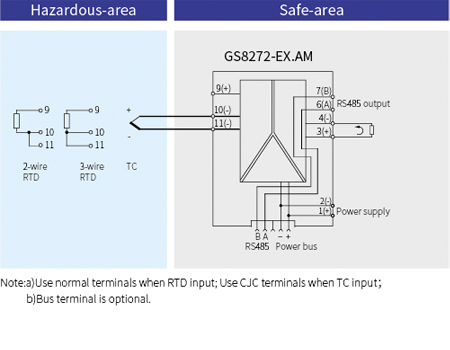

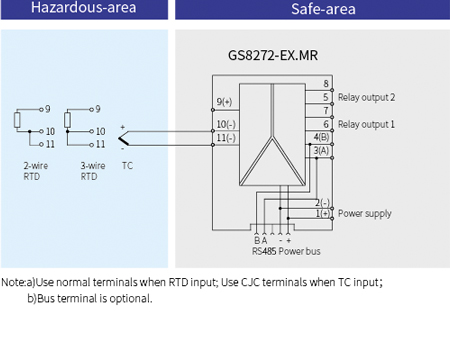

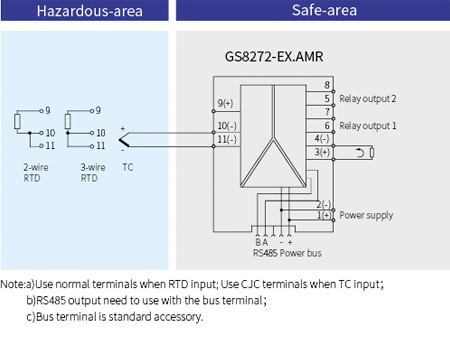

Typical Applications of GS8200-EX Temperature To RS485 Intrinsic Safety Barrier


GS8200-EX Temperature To RS485 Intrinsic Safety Barrier   GS8200-EX Temperature To RS485 Intrinsic Safety Barrier

GS8200-EX Temperature To RS485 Intrinsic Safety Barrier   GS8200-EX Temperature To RS485 Intrinsic Safety Barrier
