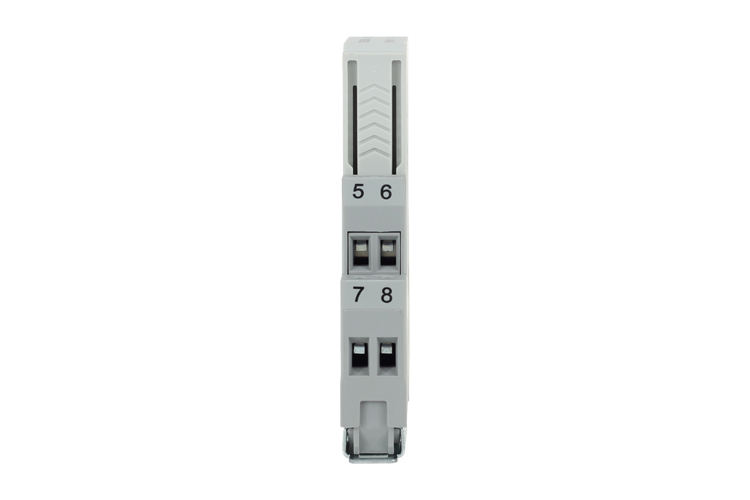

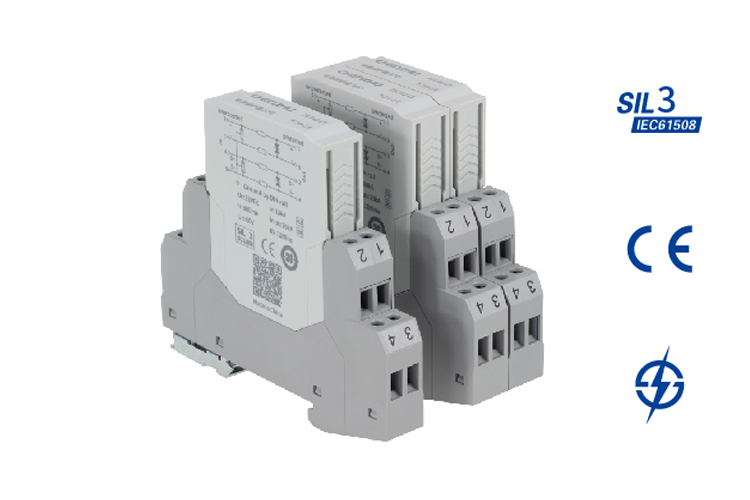

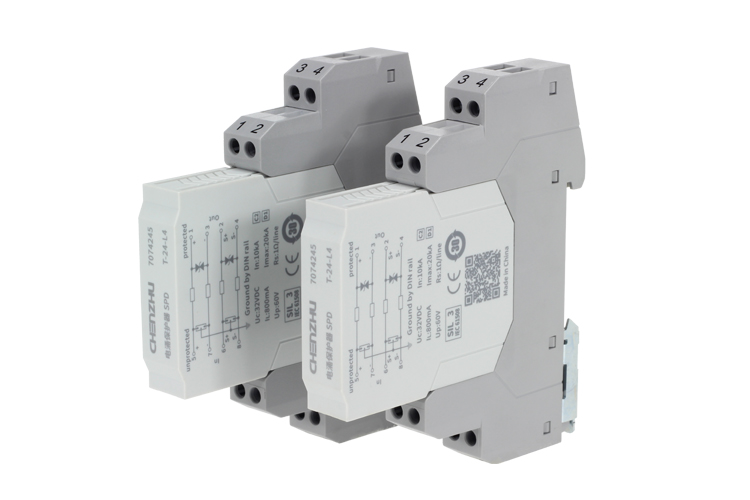

Signal SPD For 5V

SPD for 5V signal; C2: 20kV/10kA, D1: 2.5kA/line; hot-pluggable; grounded through DIN rail.

Advantages of Signal SPD For 5V

  • 12.5mm 2-channel ultra-thin design.

  • Hot pluggable.

  • SPD surge protector modules can be tested individually.

  • Suitable for AI, AO, DI, DO, RS-232 and etc.

  • Ground via DIN 35mm rail.

Parameter of Signal SPD For 5V


T-5-LT-5-L3T-5-L4
Technical data2-wire3-wire4-wire
Nominal operating voltage Un5V DC5V DC5V DC
Max. continuous operating voltage Uc6V DC6V DC6V DC
Nominal operating current IL800mA800mA800mA
Nominal discharge current In(8/20µs)10kA10kA10kA
Max. discharge current Imax(8/20µs)20kA20kA20kA
Impulse current Iimp(10/350µs)2.5kA2.5kA2.5kA
Total impulse current(10/350µs)5kA7.5kA10kA
Voltage protection level Up(8/20µs)L-L: 40V/L-G: 600VL-L: 40V/L-G: 600VL-L: 40V/L-G: 600V
Voltage protection level Up(1kV/μs)L-L: 20V/L-G: 600VL-L: 20V/L-G: 600VL-L: 20V/L-G: 600V
Bandwidth(-0.5dB)10MHz10MHz10MHz
Response time1ns1ns1ns
Resistance(per line)
Residual current IPE<10μA<10μA<10μA
Housing protection grade(IEC60529)IP 20IP 20IP 20
Housing material/inflammability rating(UL94)PA66/V0PA66/V0PA66/V0
Testing standardIEC 61643-21IEC 61643-21IEC 61643-21
Functional safety certificationSIL3SIL3SIL3

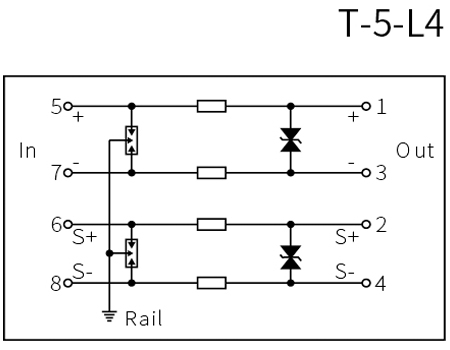

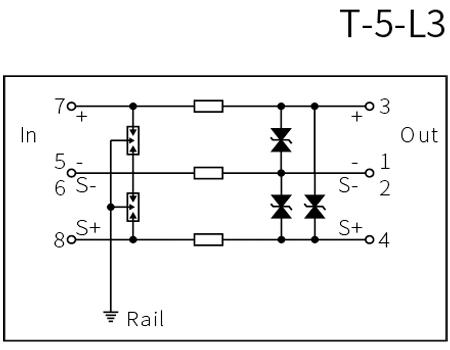

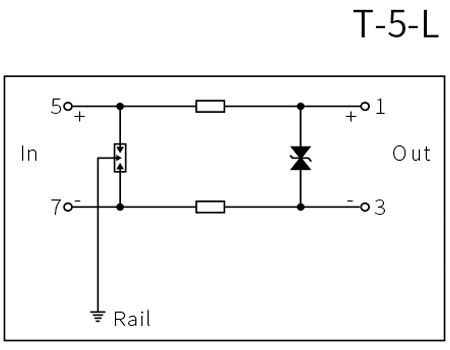

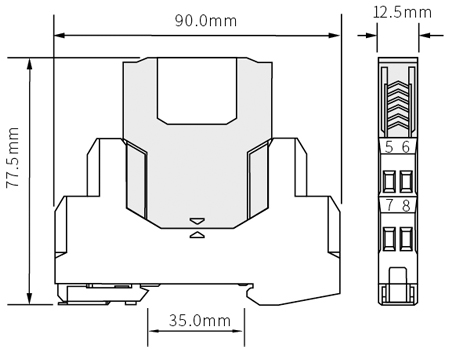

Schematic Diagram of Signal SPD For 5V


Signal SPD For 5VSignal SPD For 5V

Signal SPD For 5VSignal SPD For 5V

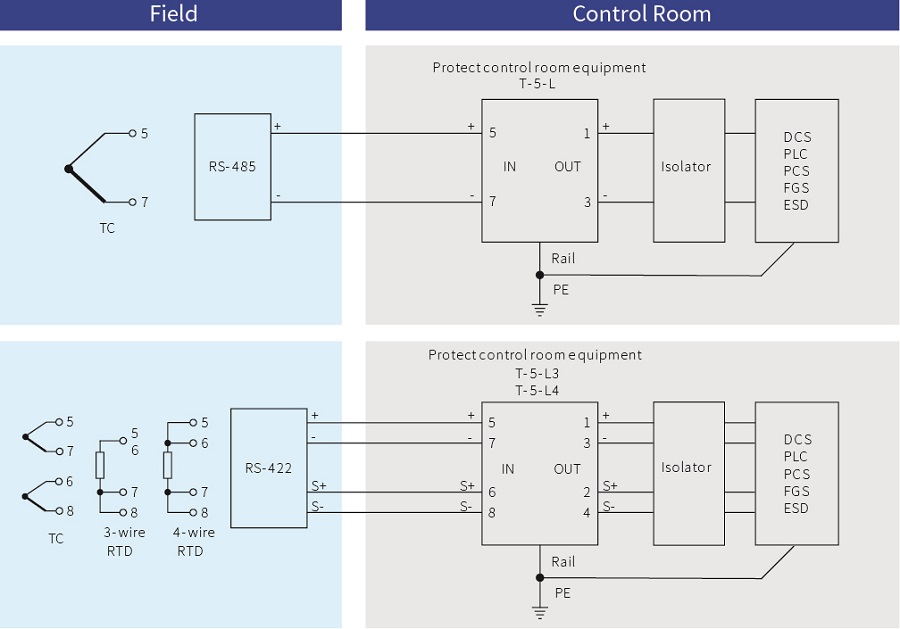

Typical Applications of Signal SPD For 5V


Signal SPD For 5V
